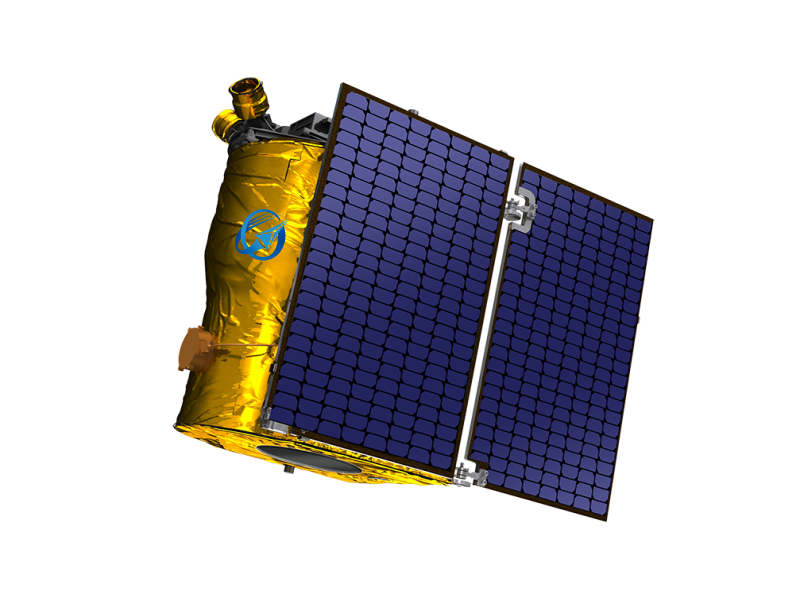

Nine Jilin-1 GF03 satellites were launched successfully on September 15, 2020. Three of them are video satellites (GF03C01~03). This series of satellites fully inherit the mature single machine and technical basis of Jilin-1GF03A satellite, and have the characteristics of low cost, low power consumption, low weight and high resolution.
|
Orbit Type |
sun-synchronous orbit |
|
Orbit Altitude |
535km |
|
Ground resolution |
1.2m |
|
Swath width (at Nadir) |
14.4km*6km |
|
Spectral Coverage |
RGB: Blue：437-512nm Green：489-585nm Red：580-723nm |
|
Code rate |
Maximum 450Mbps |
|
Maximum side-slip angle |
±45° |
|
Imaging mode |
Video |
|
Location Accuracy without GCPs |
300m(CE90, dual- satellite sensitive effective region) |
|
Total satellite quality |
40kg |
