Jilin-1 GF03D01~03

Browsing Times : 5074

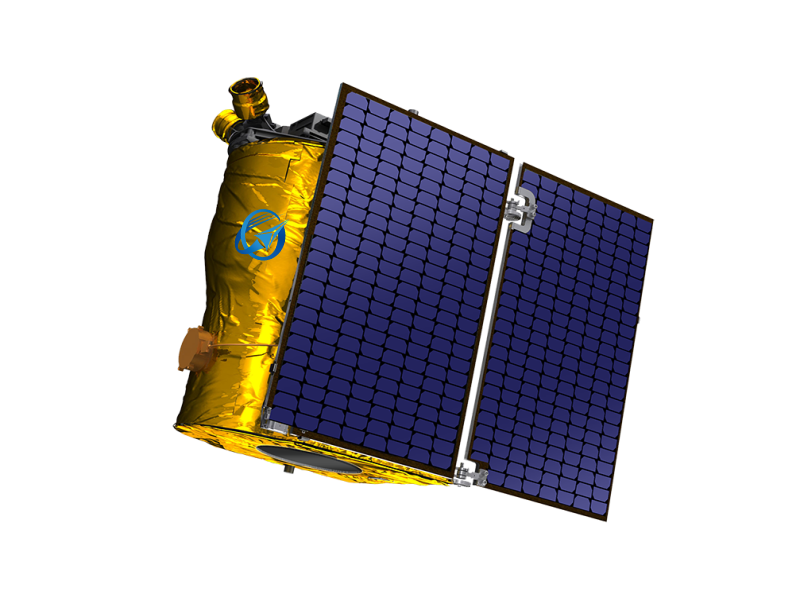

On July 3rd, 2021. Jilin-1 GF03D01 (Xueersi), GF03D02/03 were successfully launched. This series of satellites utilizes a number of innovative technologies, such as lightweight structural design, highly integrated electronics systems, and cameras with high resolution, ultra-lightweight and low-cost performance. This makes the satellite weigh in the 40kg range, but its image resolution is better than 0.75m and its width is greater than 17km.The satellite has the characteristics of low cost, low power consumption, low weight and high resolution.


Imaging mode

Push-broom, Inertial space imaging,

Image resolution

better than 0.75m

Spectral Coverage

Panchromatic color450nm700nm

Multispectral

Blue430nm520nm

Green520nm610nm

Red 610nm690nm

Near-infrared770895nm

Location Accuracy without GCPs

100mCE90

Orbit

Altitude535km

Type Sun-synchronous orbit

Swath width (at Nadir)

17km

Maximum side-slip angle

±45°

Launch

CZ-2

Launch site

TSLC
