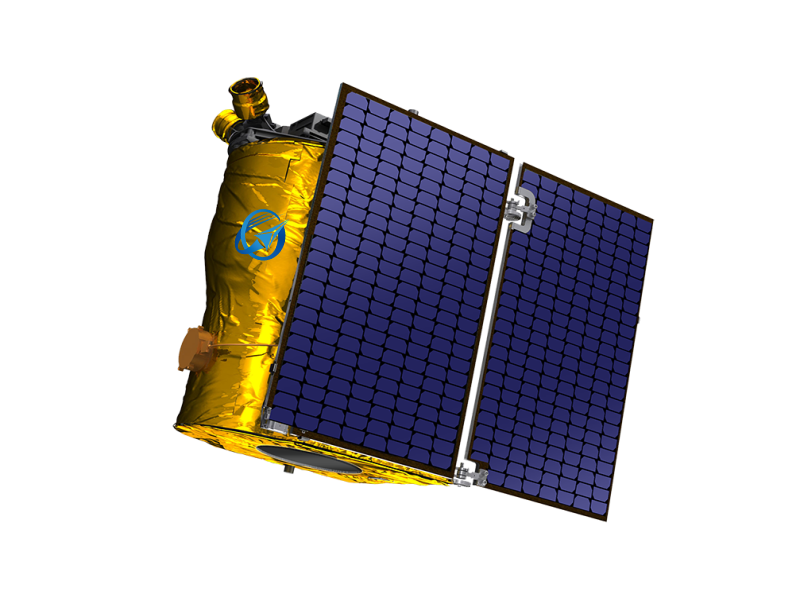

On June 5, 2019, the company successfully launched Jilin-1GF03A by CZ-11 in the Yellow Sea. Jilin-1GF03A was a new generation of optical remote sensing satellite independently created by the company. The innovative technologies such as lightweight structure design, highly integrated electronic system, high resolution/ultra-lightweight/low cost camera, etc. were adopted for satellite, and the satellite the characteristics of low cost, low power consumption, low weight and high resolution.
|
Track type |
45°inclined circular orbit |
|
Track height |
572km |
|
Satellite point ground pixel resolution |
Panchromatic is superior to 1.06m and multispectral is superior to 4.24m. |
|
Imaging bandwidth |
Superior to 18.5km |
|
Imaging spectral segment |
Full colour: 450nm - 700nm Blue: 450nm - 510nm Green: 510nm - 580nm Red: 630nm - 690nm Near-infrared: 770nm - 895nm |
|
Data transmission code rate |
Maximum 450Mbps |
|
Side sway angle range |
±45° |
|
Image mode |
Push broom imaging, Multi-target push-broom imaging and Space target imaging |
|
Single orbital imaging time |
5minThe longest distance is not less than 5min |
|
Uncontrolled accuracy |
Superior to 100m (CE90, binary effective region) |
|
On-orbit quality |
<40kg |
